For many apps, Superwall's built-in presentation options will be more than enough. Full modal presentations, "navigation" pushes, sheets and more cover most use cases.
But, what about those times where you need a custom presentation? The Superwall SDK has support for that too, and in this post — I'll show you how it's done on iOS. Specifically, in a SwiftUI app and using SwiftUI view types.
To learn how, we’ll cover how to take full control of the paywall presentation pipeline to:
Push a paywall onto a native
NavigationStack
:
And, embed a paywall in another
View
to show an in-line trial offer:
Here's what the flow looks like:
We'll retrieve a paywall using the Superwall SDK.
Then, we'll insert that into a
UIViewControllerRepresentable
.We'll specify that the representable should respect the
SwiftUI
layout and sizing system.Finally, we'll display that when and however we want.
Getting a paywall controller
The Superwall SDK presents paywalls using a UIViewController
, which is a UIKit
type. That's not a problem for SwiftUI apps, since there is full support for embedding them in a SwiftUI View
.
First up, you’ll want to retrieve the paywall using the Superwall.shared.getPaywall(forEvent:params:)
method. This allows you to get the paywall controller for the placement you provide. Here's a short example of how it works, and we'll build off of it:
func getPaywallFor(event: String) async {
do {
// Get the paywall that would show for a given placement...
let result = try await Superwall.shared.getPaywall(forEvent: event, delegate: self)
self.paywallController = result
} catch let skippedReason as PaywallSkippedReason {
switch skippedReason {
case .holdout,
.noRuleMatch,
.eventNotFound,
.userIsSubscribed:
showAlternateUI.toggle()
break
}
} catch {
print(error)
}
}
swift
That's the basics — give Superwall the placement that would result in a paywall being shown, and get the instance of it. The getPaywall(forEvent:delegate:)
also requires a delegate, which will tell us useful things like reasons why a paywall wasn't retrieved. We'll go over those details in a second.
With that in mind, to integrate with SwiftUI we'll use the Observable
framework to house some logic that'll cover error handling, informing SwiftUI when the controller is retrieved and more. For many cases, you could copy and paste this class into your own app to handle custom paywall presentation and tweak it as you see fit:
@Observable
class PaywallFetchManager: PaywallViewControllerDelegate {
// 1
var paywallController: UIViewController? = nil
// 2
var showAlternateUI: Bool = false
// 3
var userHasAccess: Bool = false
// 4
var skipReason: PaywallSkippedReason? = nil
func getPaywallFor(event: String) async {
do {
let result = try await Superwall.shared.getPaywall(forEvent: event, delegate: self)
self.paywallController = result
} catch let skippedReason as PaywallSkippedReason {
switch skippedReason {
case .holdout,
.noRuleMatch,
.eventNotFound,
.userIsSubscribed:
self.skipReason = skippedReason
break
}
} catch {
print(error)
showAlternateUI.toggle()
}
}
// MARK: Paywall Delegate
func paywall(_ paywall: SuperwallKit.PaywallViewController,
didFinishWith result: SuperwallKit.PaywallResult,
shouldDismiss: Bool) {
if shouldDismiss {
paywall.dismiss(animated: true)
}
switch result {
case .purchased,
.restored:
self.userHasAccess.toggle()
case .declined:
let closeReason = paywall.info.closeReason
let featureGating = paywall.info.featureGatingBehavior
if closeReason != .forNextPaywall && featureGating == .nonGated {
self.userHasAccess.toggle()
}
}
}
}
swift
Now, we could use an instance of this in our SwiftUI app to handle retrieving a paywall. Another thing to note here is this process is fast, since most of the time — the paywall is cached. Here's a few notes about the comments:
This will represent the
UIViewController
of the paywall we fetched. Since, again, we're using the Observation framework, when it's set SwiftUI can react to that and show a controller.If there was an error, you may want to show another
View
or change your user experience.If the paywall shouldn't show because a user has access to a feature, or it's non-gated — then the Superwall SDK won't return a controller. Basically, the user has the "pro" feature and no paywall should show. This will occur in our delegate callback if the user purchases something from the paywall we show, too.
Similar to point #3 above, but you'll get the specific reason here which is useful if you need more fine-grain control over the process.
You may not use each of those flags, but I provided them for completeness.
Here's a quick example of what it all would look like hooked up:
struct MyView: View {
@State private var manager: PaywallFetchManager = .init()
var body: some View {
VStack {
if let controller = manager.paywallController {
// Show a representable of the controller
} else {
// Look at the error, or skip reason, and show something else
}
}
.task {
await manager.getPaywallFor(event: "some_placement")
}
}
}
swift
Creating a representable
Now, we'll need to wrap this in a UIViewControllerRepresentable
so we can use it in SwiftUI:
struct SuperwallPaywallViewController: UIViewControllerRepresentable {
typealias UIViewControllerType = UIViewController
var paywallController: UIViewController
func makeUIViewController(context: Context) -> UIViewController {
return paywallController
}
func updateUIViewController(_ uiViewController: UIViewController, context: Context) {
// Any update logic you might need. In most cases, you won't need this
}
func sizeThatFits(_ proposal: ProposedViewSize, uiViewController: UIViewController, context: Context) -> CGSize? {
guard
let width = proposal.width,
let height = proposal.height
else { return nil }
return CGSize(width: width, height: height)
}
}
swift
As we'll see in a minute, in some cases you may want to size the paywall in a particular way. To account for that, we'll need to forward that layout data to the representable. The sizeThatFits(_:uiViewController:context:)
function takes care of that for us.
With that, we've got everything in place. Let's see the code for how to present our paywall controller in a native navigation stack, and in an embedded view.
Presenting in a navigation stack

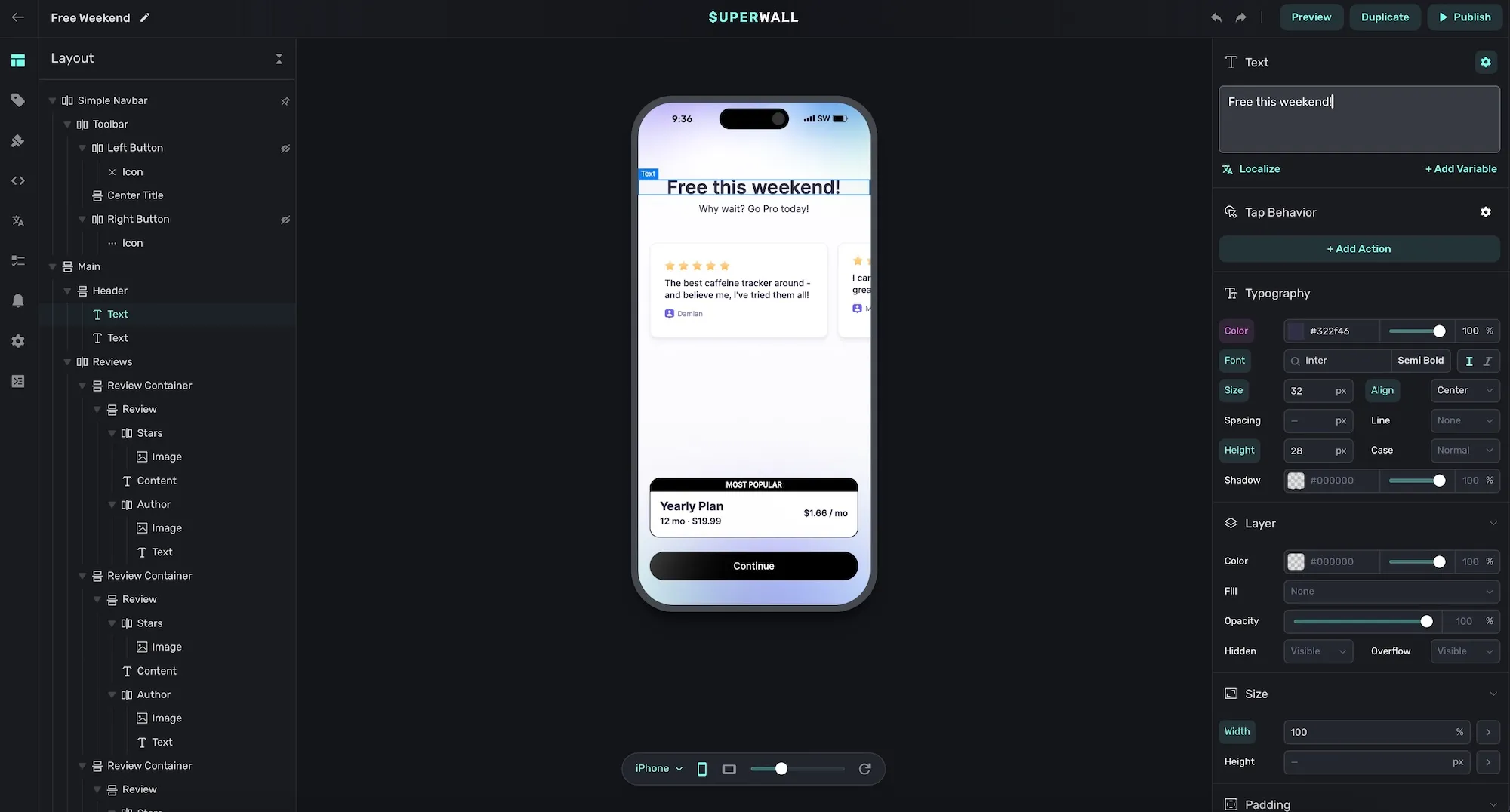

Here's the paywall I'd like to show in a navigation stack:
We'll follow the flow outlined above — fetch the paywall, and use in a native NavigationLink
:
// Root of the navigation stack...
struct AccountsView: View {
var body: some View {
NavigationStack {
Form {
// Existing UI
NavigationLink("Account Settings") {
AccountSettingsViewExample()
}
}
}
}
}
struct AccountSettingsViewExample: View {
@Environment(PaywallFetchManager.self) private var manager
var body: some View {
Form {
Section {
VStack {
// Show the paywall during a push
NavigationLink("View Pro Benefits") {
if let c = manager.paywallController {
SuperwallPaywallViewController(paywallController: c)
.edgesIgnoringSafeArea(.all)
} else {
FallbackPaywallView()
}
}
.foregroundStyle(.blue)
}
}
// More UI code...
}
.task {
// Fetch the paywall
await manager.getPaywallFor(event: "caffeineLogged")
}
}
}
swift
And that's it! Here's the result:

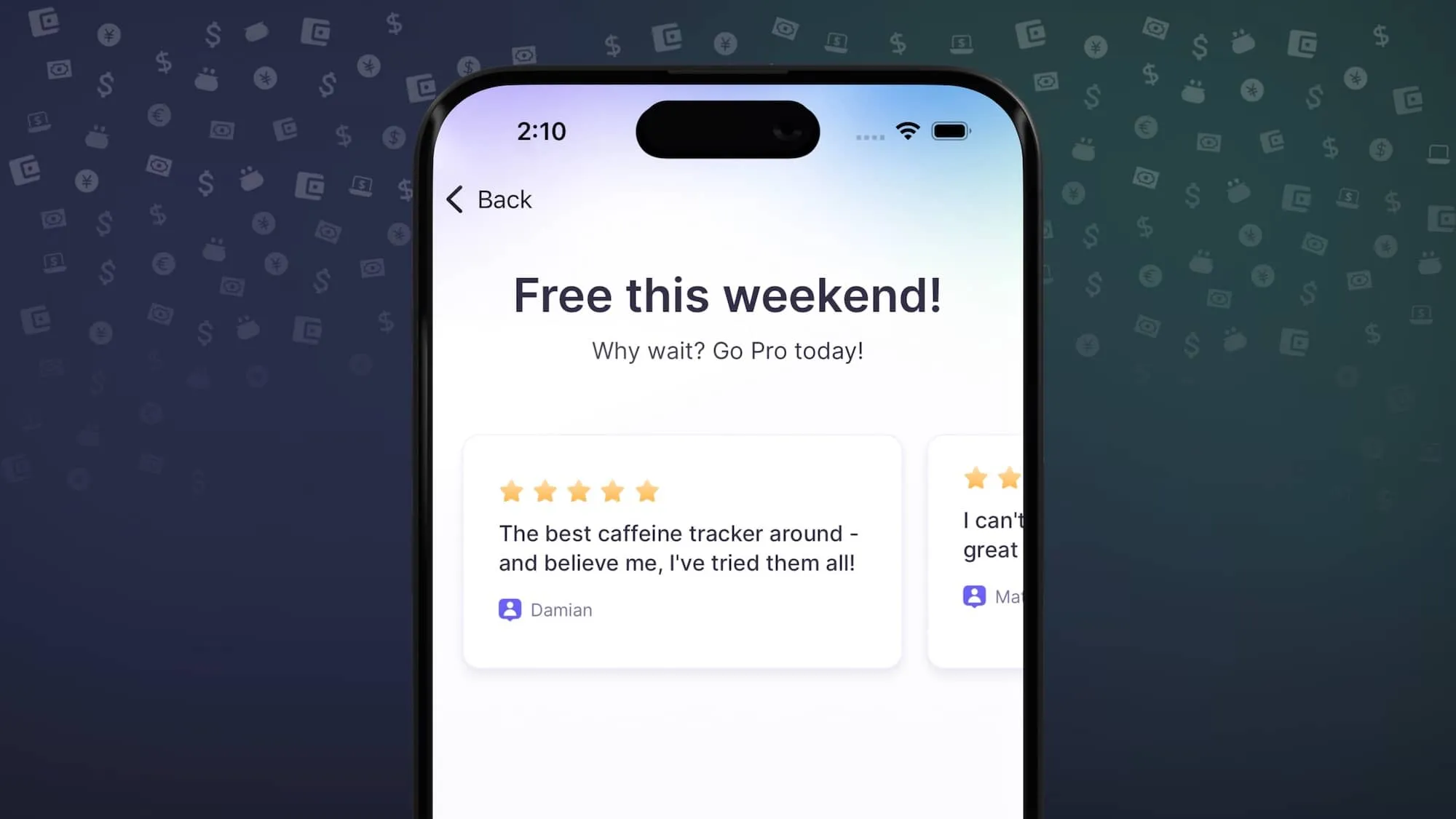

Pushing a Superwall paywall controller onto a navigation stack
Notice how we get all of the benefits of a native navigation stack, such as holding down the back button to pop to different views that are on the stack.
Presenting an embedded call-to-action

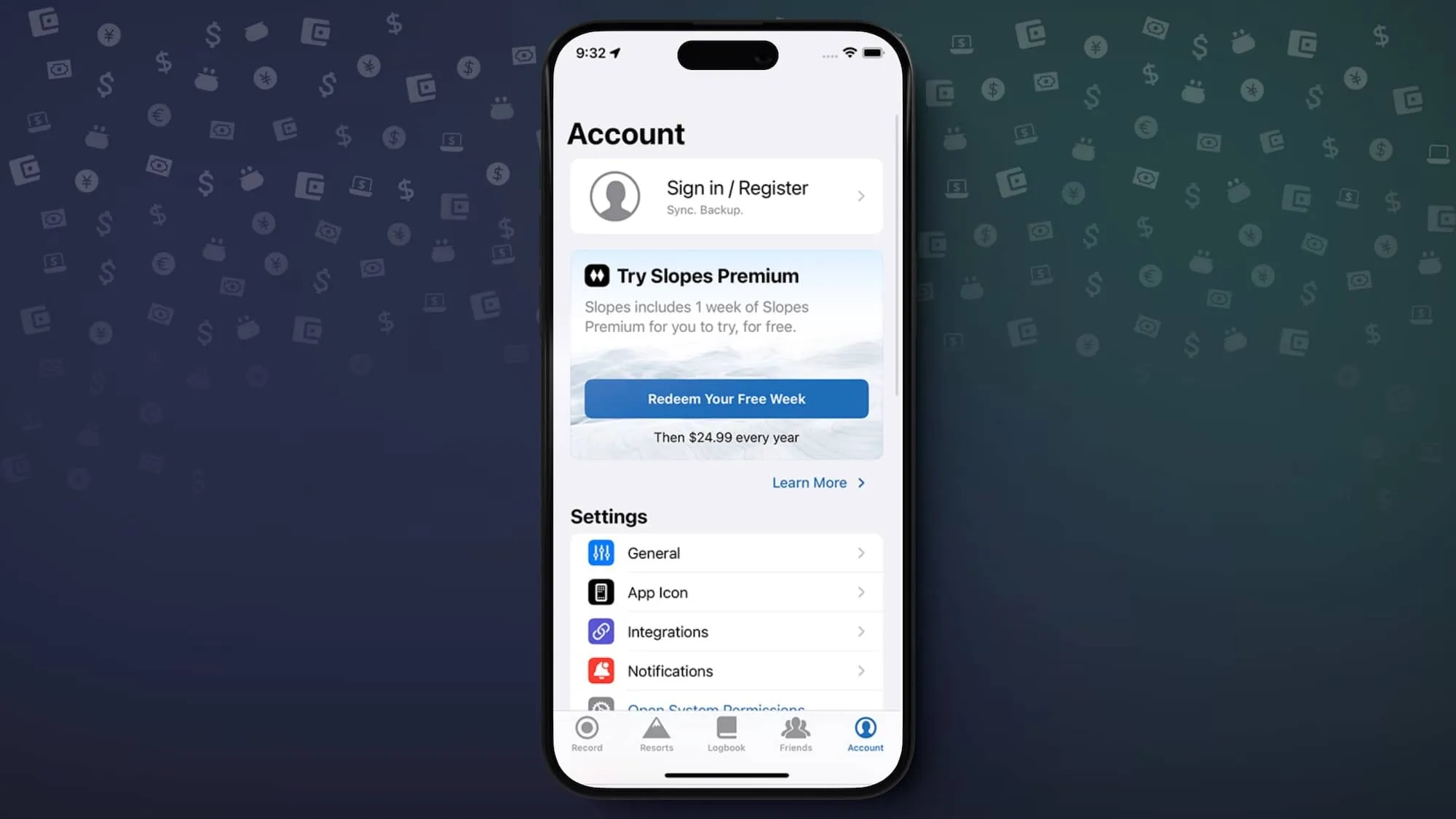

Another effective use-case is to show an a paywall with a clear call-to-action embedded in another view. Slopes wrote extensively about how going straight to the payment sheet (like Apple Arcade does) drove up trial starts:
We can do the same thing here. First, we'll create a paywall in our editor with two things in mind:
We'll make sure the user interface is centered.
And, we'll give it an explicit height, and make sure it takes up with viewport's entire width.

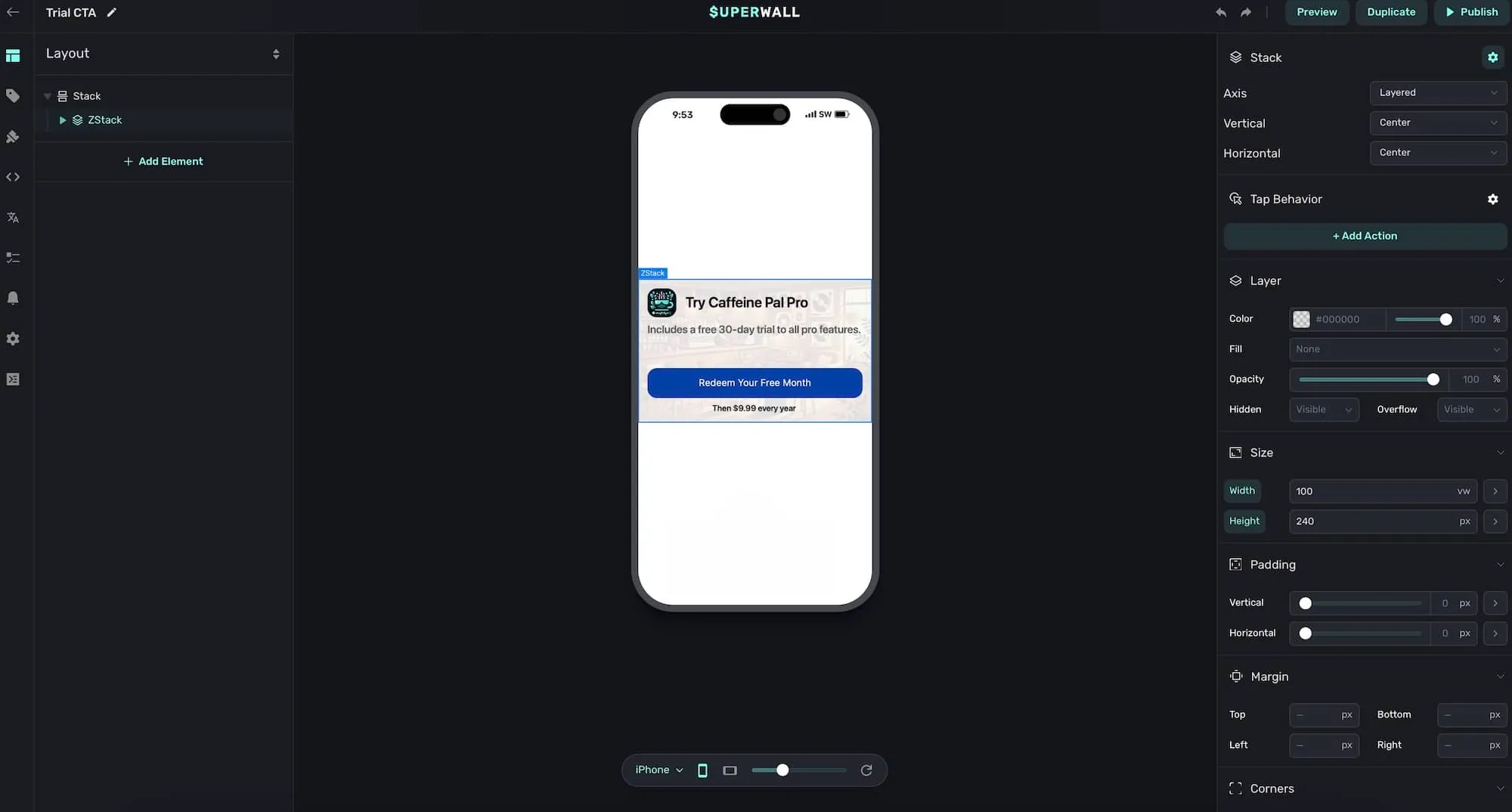

Here's the example I came up with:
Again, notice the sizing I've set for the containing stack (100% of the viewport width, and a clear height of 240 pixels:
With that set, here's how we'd show that in our SwiftUI app:
struct OnRampView: View {
@Environment(PaywallFetchManager.self) private var manager
var body: some View {
ZStack {
if manager.userHasAccess {
MemebershipView()
} else if let controller = manager.paywallController {
SuperwallPaywallViewController(paywallController: controller)
.frame(height: 240)
.clipShape(.rect(cornerRadius: 16))
} else {
EmptyView()
}
}
.task {
await manager.getPaywallFor(event: "showOnRamp")
}
}
}
swift
Notice the 240 points of height we used here, and in the paywall editor. Now, users can start a trial right there, without opening anything else:

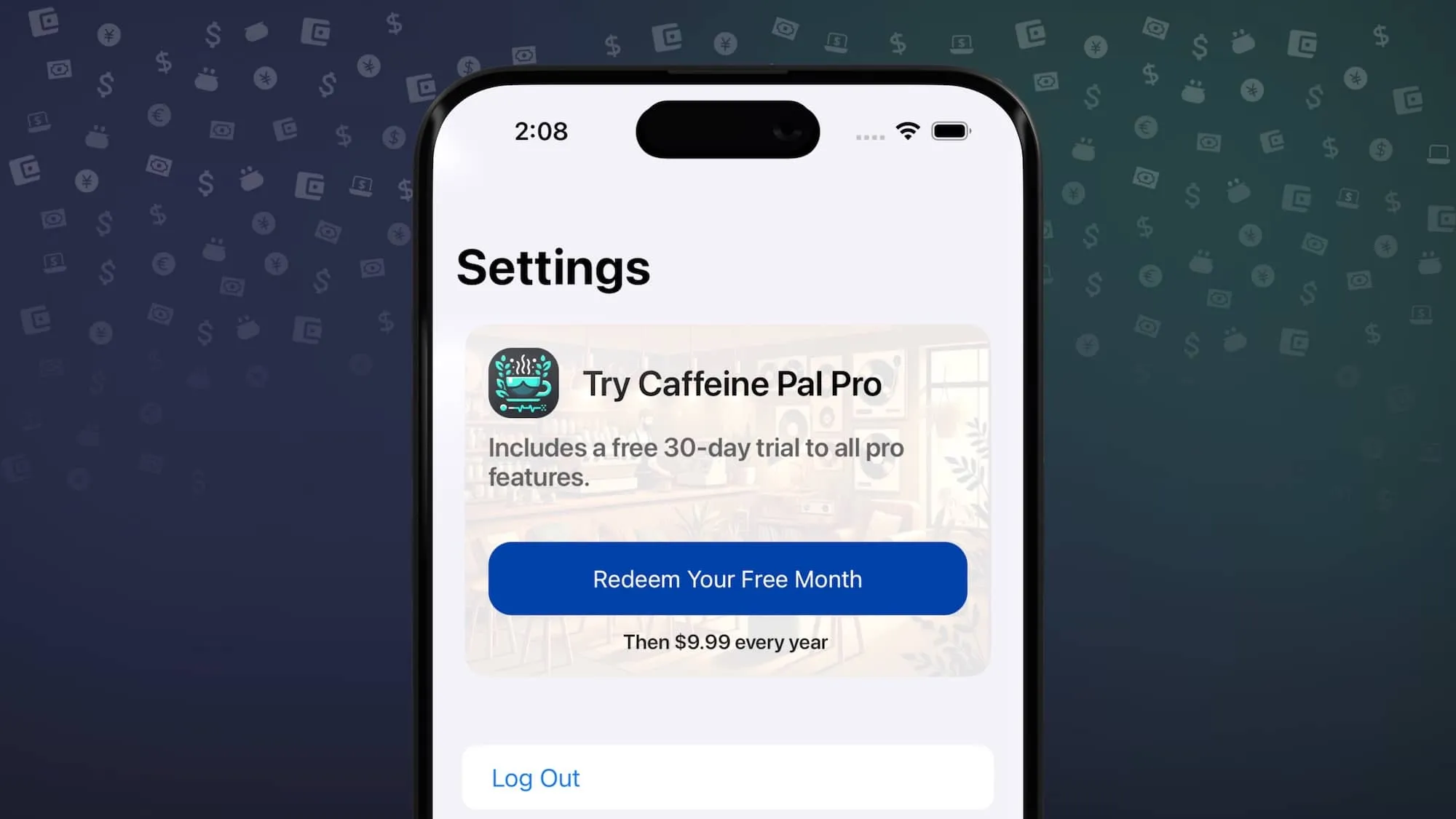

Starting a trial from an embedded paywall view
Wrapping It Up
Manually retrieving and presenting paywalls with Superwall gives you the flexibility to tailor the paywall experience to your app’s needs. Whether you use the built-in presentation options or create your own custom flow, the SDK provides the tools you need to integrate paywalls seamlessly into your app’s workflow.
Superwall is the best way to test these kinds of experiences. Next, you should try these techniques out with different paywall designs and products with just a few clicks. Testing them will help you grow your revenue. If haven't started with Superwall, you can for free — just sign up right here.
